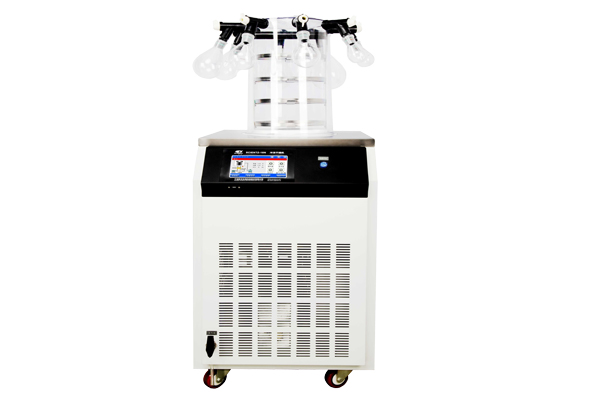

SCIENTZ-18N

I. main features:

1. This machine adopts the international brand skopol (former danfoss) compressor for refrigeration, with rapid refrigeration and low cold well temperature.

2. The seven-inch real color touch LCD control system is simple, convenient and powerful.

3. Industrial embedded operating system, ARM9 core control circuit design, 2m 3memory 128M FLASH, fast operation response speed and large amount of data storage.

4. The control system automatically saves the freeze-drying data and can be viewed in the form of real-time curves and historical curves. The whole freeze-drying process is clear and clear.

5. Colorless and transparent primary injection molding polycarbon drying chamber is adopted in the drying room. Corrosion resistance, non-fragile, non-adhesive, high transparency, high tightness, clear and intuitive samples can be observed during freeze-drying.

6. The connection between the vacuum pump and the main machine adopts international standard KF quick connector, which is simple and reliable.

7. The machine can store multiple freeze-drying curves, extract data from the usb flash drive to the computer, and browse and print in the computer with the computer software and various options.

8. Equipped with air charging valve to charge dry inert gas;

Ii. Optional function:

* testing function of eutectic point to master better sublimation temperature of materials.

* vacuum degree control function to maximize heat conduction.

* double machine cascade refrigeration system, mature technology, low temperature, used to - 80 ℃ the lyophilizer.

* equipped with wide-mouth manifold freeze-drying bottle, it is easy to load materials and can be connected with imported standard freeze-drying bottle valve. Let me label it 6.

* optional electric defrosting function to accelerate defrosting speed and shorten drying cycle.

* optional multi-brand imported vacuum pump

Iii. Standard configuration:

1. Common type: host + drying room + anti-return oil domestic vacuum pump + 7-inch touch color screen with USB + nitrogen gas valve;

2. Gland type: host + drying room + anti-return oil domestic vacuum pump + 7-inch touch color screen with USB + nitrogen gas valve

3. Common multi-manifolds: main machine + multi-manifolds drying chamber + anti-return oil domestic vacuum pump + 7-inch USB touch color screen + nitrogen gas valve +8 sets of freeze-dried eggplant bottles

4. Gland polymanifolds: main machine + multi-manifolds drying chamber + anti-return oil domestic vacuum pump + 7-inch touch color screen with USB + nitrogen gas valve +8 sets of freeze-dried eggplant type bottles

5. T-frame: main engine + t-frame (multiple pipes)+ anti-return oil domestic vacuum pump + 7-inch touch color screen with USB + nitrogen gas valve +24 ampoule tube t-frame
