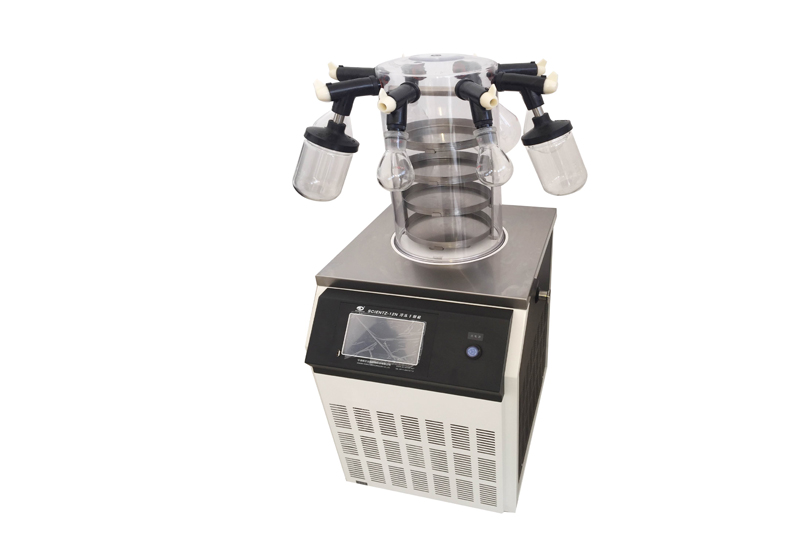

SCIENTZ-18ND

I. main features:

1. This machine adopts the international brand skopol (former danfoss) compressor for refrigeration, with rapid refrigeration and low cold well temperature.

2. The seven-inch real color touch LCD control system is simple, convenient and powerful.

3. Industrial embedded operating system, ARM9 core control circuit design, 2m 3memory 128M FLASH, fast operation response speed and large amount of data storage.

4. The control system automatically saves the freeze-drying data and can be viewed in the form of real-time curves and historical curves. The whole freeze-drying process is clear and clear.

5. Colorless transparent polycarbon drying chamber is adopted in the drying room. The samples are clear and intuitive, and the whole process of freeze-drying can be observed.

6. The connection between the vacuum pump and the main machine adopts international standard KF quick connector, which is simple and reliable.

7. The machine can store multiple freeze-drying curves, extract data from the usb flash drive to the computer, and browse and print in the computer with the computer software and various options.

8. The control system has 36 freeze-drying curve options, each of which contains 40 temperature control Settings. The freeze-drying process parameters of various materials can be recorded.

9. The unique calculation method of point heating heating temperature curve of our company is more stable, no overshoot, and more accurate temperature control.

10. Equipped with air charging valve to charge dry inert gas;

11. The temperature of the baffle is adjustable, controllable, groping, pilot test and production process.

12. Equipped with two working modes, manual and automatic, the freeze-drying curve of new materials can be explored manually

Ii. Optional function:

* testing function of eutectic point to master better sublimation temperature of materials.

* vacuum degree control function to maximize heat conduction.

* double machine cascade refrigeration system, mature technology, low temperature, used to - 80 ℃ the lyophilizer.

* equipped with wide-mouth manifold freeze-drying bottle, it is easy to load materials and can be connected with imported standard freeze-drying bottle valve. Let me label it 6.

* optional electric defrosting function to accelerate defrosting speed and shorten drying cycle.

* optional multi-brand imported vacuum pump
